OSC to Resolume float value

Support
1

OSC is getting from ableton to Resolume on the network - but - it’s not triggering the clip.

I’m assuming is has something to do with the float value and how it gets sent.
I’m in rehearsal now - anyone got the fix until I can troubleshoot on my own?

thanks!!

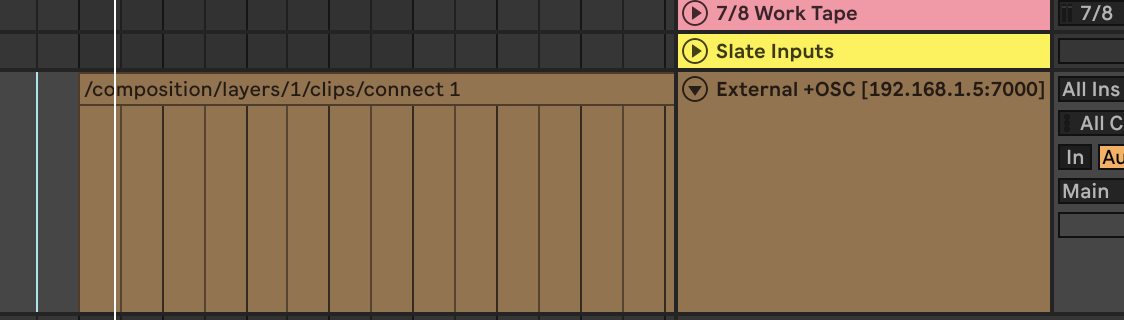

Screenshot 2026-06-16 at 10.41.35 AM
Screenshot 2026-06-16 at 10.41.35 AM1714×536 28.2 KB

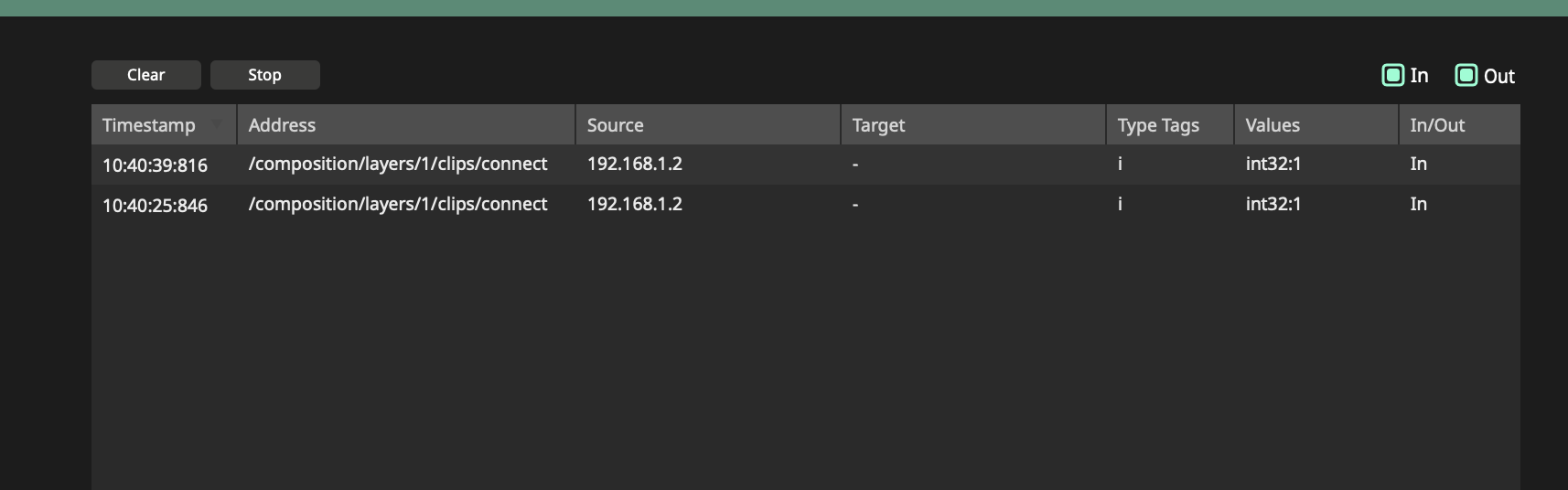

Screenshot 2026-06-16 at 10.41.30 AM
Screenshot 2026-06-16 at 10.41.30 AM1124×320 24.1 KB

Describe your issue here:

The more information you include, the better. If you like, you can also attach images or videos.

Please fill out these values to make it easier to troubleshoot:

  • OS and Version: (e.g. macOS Ventura 13.3)
  • Version of AbleSet: (e.g. 2.2.3)
  • Version of Ableton Live: (e.g. 11.3.3)
2

how do I get support for this without being annoying? :slight_smile:

3

might be user error. didn’t add a # after clips/(here)/connect. will try tomorrow. :slight_smile:

4

Hey @vinceromanelli,

Please excuse my late reply!

Could you try adding the column number of the clip you want to trigger and let me know if that fixes it?

For example, to launch clip 1 in layer 1:

/composition/layers/1/clips/1/connect 1

Let me know how it goes!

1 Like
5

If you open the OSC menu in resolume and select a clip, in the bottom right you’ll see the exact OSC address. Copy that in your clip in ableton and it should work assuming that your IP address and port are set up properly (which seems to be the case since receiving OSC strings already from ableton)
